Spesifikasi
Model Name : PRO Z890-S WIFI PZ
CPU Support : Support Intel® Core™ Ultra Processors (Series 2)
CPU Socket : LGA 1851
Chipset : Intel® Z890 Chipset
Expansion Slots :
1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slots
1 x PCIe 3.0 x1 slot
Display Interface : 1 x Thunderbolt™ 4 (Type-C),
Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support : 4 DIMMs, Dual Channel DDR5 – 8600+ MT/s
Storage
1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
Thunderbolt™ 4 : 1 x USB Type-C up to 40Gbps, Charging support up to 5V/3A , 15W

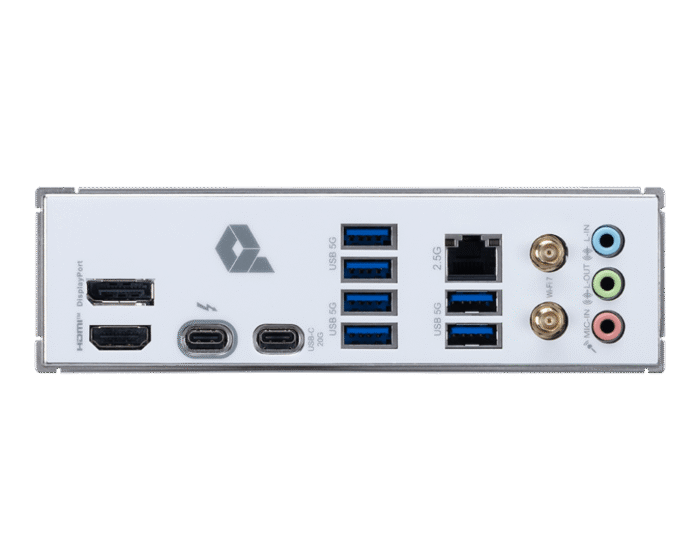

USB ports :
2 x USB 20Gbps (2 Type-C),
8 x USB 5Gbps (8 Type-A),
4 x USB 2.0
LAN : Realtek® RTL8125D 2.5G LAN
WiFi / BT : Intel® Wi-Fi 7, Bluetooth 5.4
Audio : 8-Channel (7.1) HD Audio with Audio Boost
