Spesifikasi

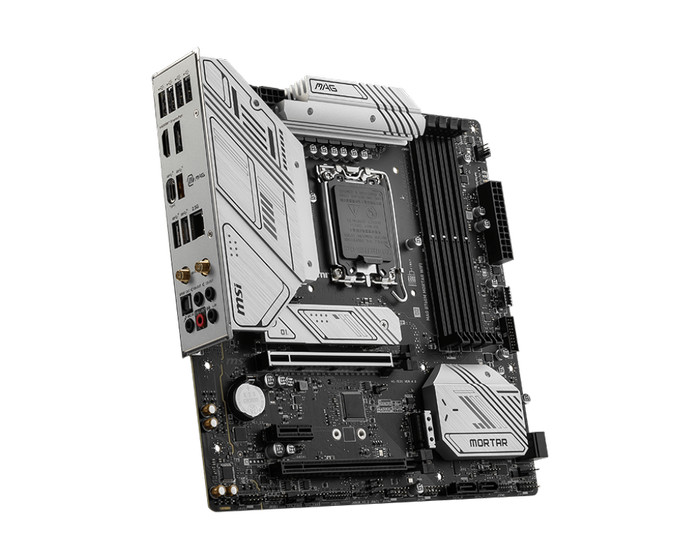

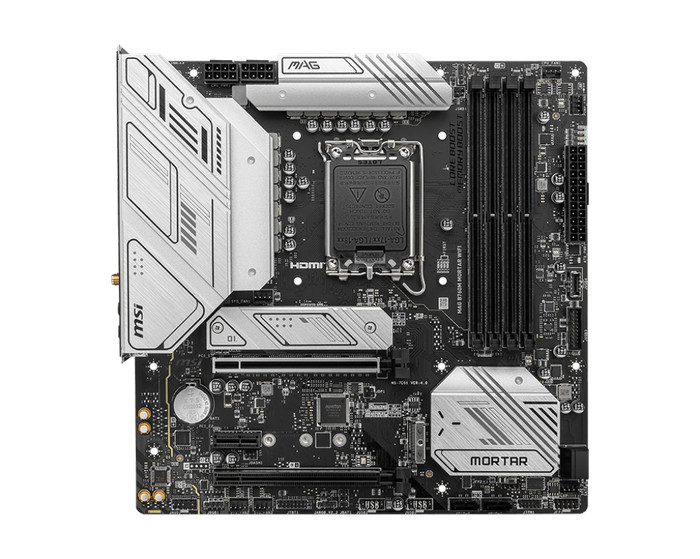

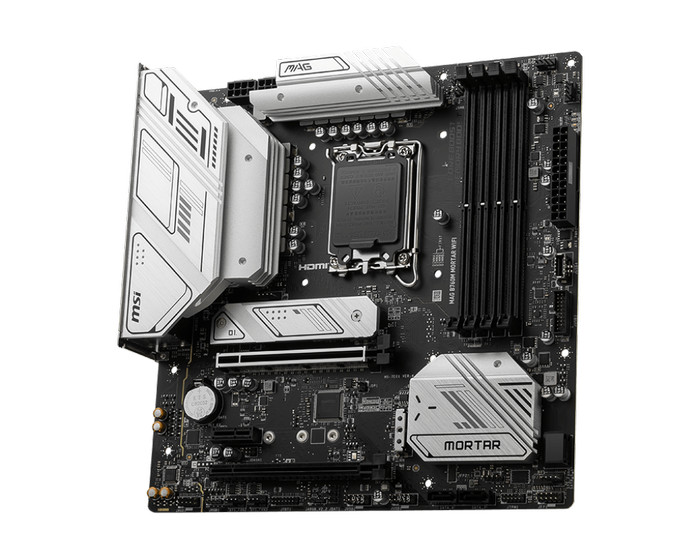

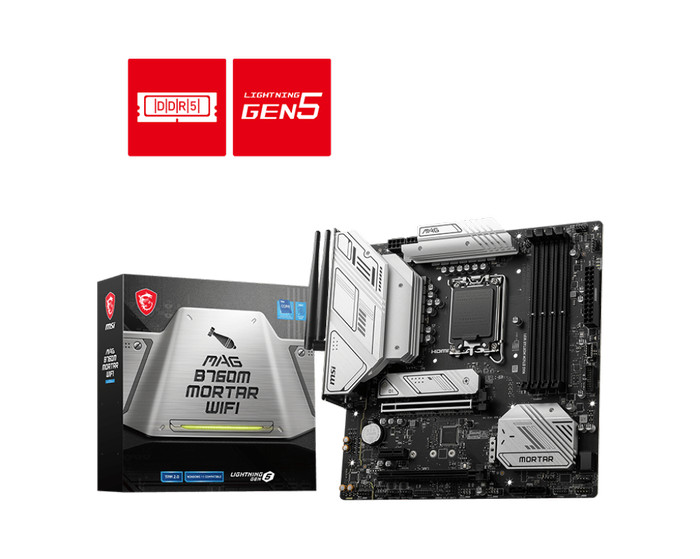

Model Name : MAG B760M MORTAR WIFI
CPU Support : Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron®
Processors : CPU Socket LGA 1700
Chipset Intel® : B760 Chipset
Expansion Slots : 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface : Support 4K@60Hz as specified in HDMIâ„¢ 2.1, DisplayPort
Memory Support : 4 DIMMs, Dual Channel DDR5-7000+ (OC)
Storage : 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports
USB ports :
1x USB 3.2 Gen 2×2 20Gbps (Type-C)
4x USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
2x USB 3.2 Gen 1 5Gbps (Type-A)
8x USB 2.0
LAN Realtek® : RTL8125BG 2.5Gbps LAN
Wireless / Bluetooth : Intel® Wi-Fi 6E, Bluetooth 5.3
Audio : 8-Channel (7.1) HD Audio with Audio Boost
Warranty 1 Year
